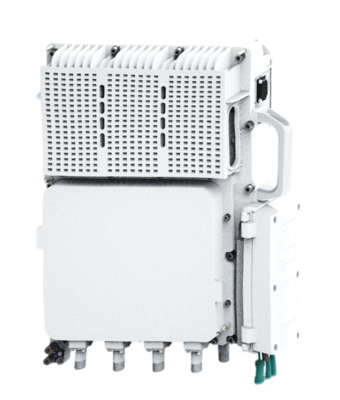

2026 MWC New Product Launch: 5G NR-U Macro Base Station

JTlink5800 Main Functions:

Ø Support 2 different type, 5725-5925mhz or 5925-6125mhz

Ø Supports 5G NR standard SA architecture.

Ø Supports 1 NR cell with 100 MHz bandwidth and 4T4R configuration.

Ø Supports 10 Gbps SFP+ optical fiber backhaul interface.

Ø Maximum output power of the whole system: 4 × 5 W

Ø Supports multiple clock synchronization modes, including GPS, BeiDou, and IEEE 1588v2.

Ø Supports operation and maintenance through network management systems (OMC/LMT): configuration management, fault management, performance management, version management, foreground-background communication management, etc.

Ø Optional AC 110 V/220 V power supply mode.
