5G Portable MiFi Router with WiFi6/Power Bank/USIM/eSIM/Qualcomm X62


Consult immediately Download

Product Details

Model	TM-500G	3GPP	R16, 5G NR, LTE-A CAT20
Band	NA/EU/Global	Management system	FTP, HTTP,HTTPS and TR-069
Battery capacity	5800mAh	Chip	Qualcomm X62
Antenna gain	3dbi

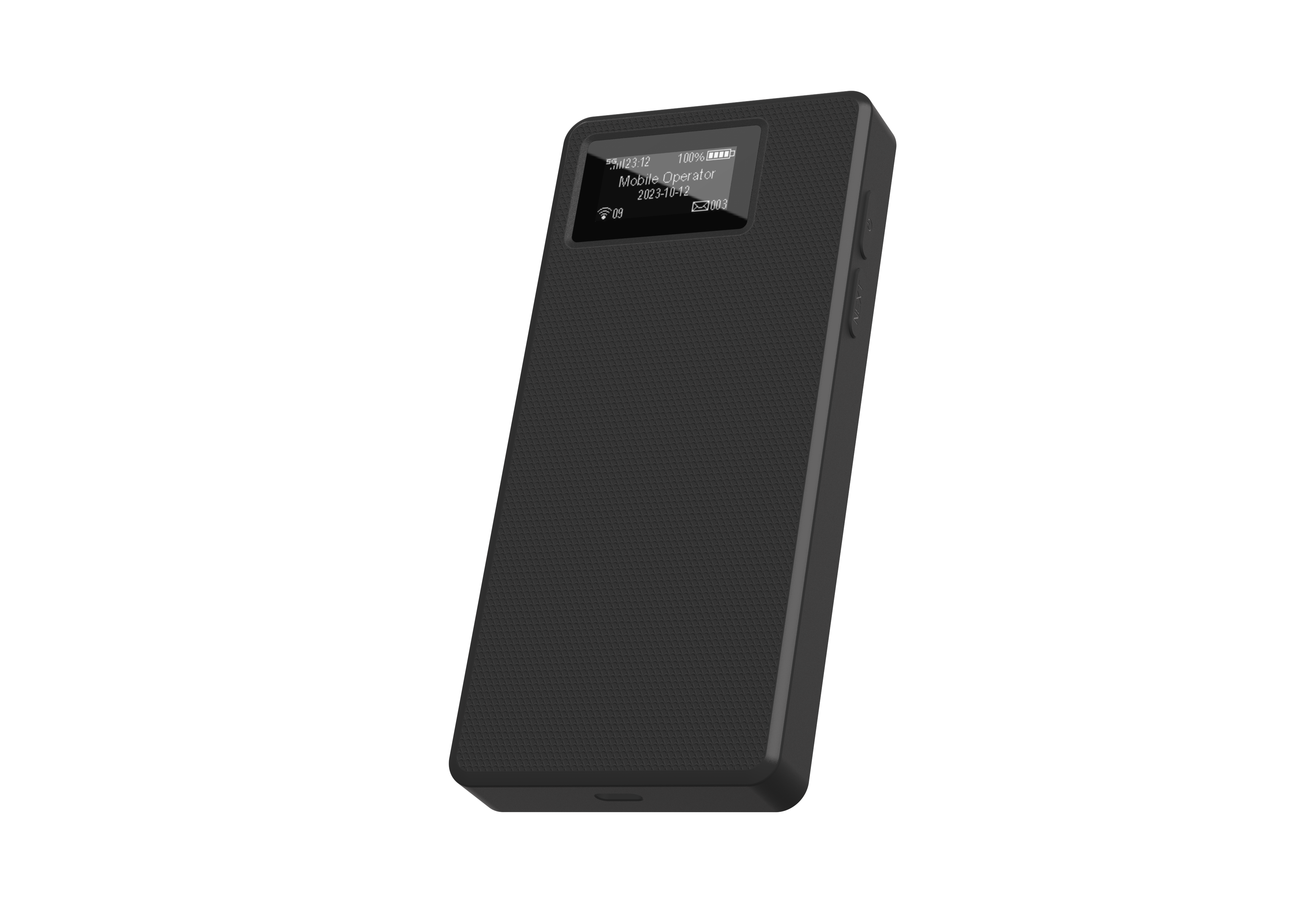

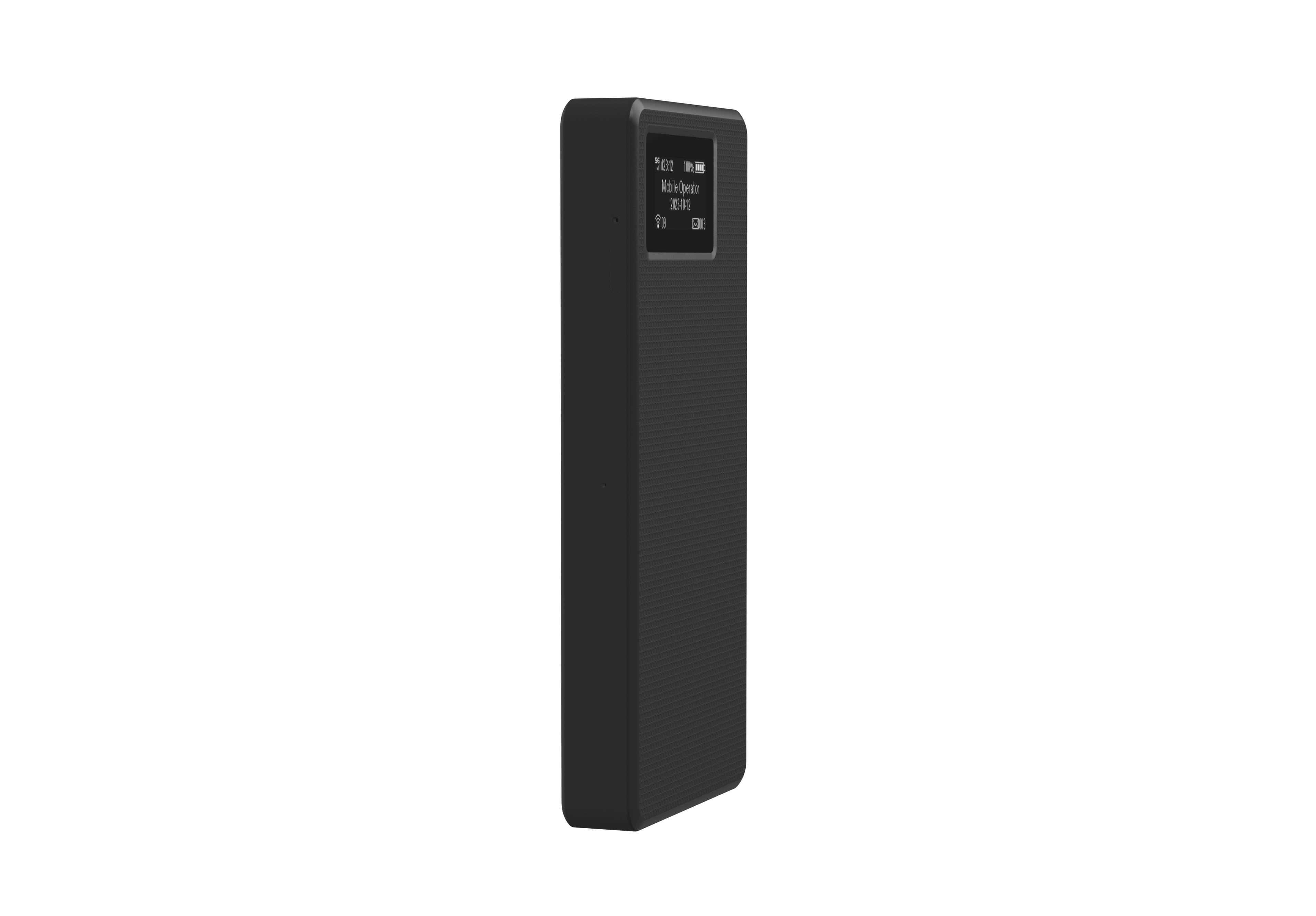

TM-500G: The Ideal Travel Companion for Seamless Connectivity

TM-500G has a sleek and compact design, making it extremely convenient to carry around. Its small size allows you to easily slip it into your pocket or bag, ensuring that you have areliable internet connection on the go, whether you are traveling, working outdoors,or simply moving around different locations within your home or office. The device is crafted with high-quality materials, ensuring durability and a long life span, so you can rely on it for your daily internet needs.

User Interfaces
Display	1.3” single color LED screen
USB	1*USB 3.0 Type-C Port
Button	Power, Next，Reset
SIM Support	1* 4FF Nano-SIM，Option: eSIM

Electrical Specifications
Power Input	5.0V 2A
Battery	3.7V 5800mAh (Typical Capacity)
Power Bank	Support

Environmental Specifications
Operation Temp.	-10℃ to 55℃
Humidity	90% MAX non-condensing

Mechanical & Package
Dimensions	135mm X 75mm X 18mm
Weight	210g
Accessories	USB A-C Cable, Quick User Guide

Wireless Specifications
Radio Access	5G NSA/SA 5G NR Sub-6G, LTE-TDD/LTE-FDD/WCDMA
Radio Access	5G NSA/SA 5G NR Sub-6G, LTE-TDD/LTE-FDD/WCDMA
Standards	3GPP Release 16
Band (NA Version)	5G-NR: n2/5/7/12/13/14/25/26/29/30/38/41/48/66/ 70/71/77/78/79 LTE-FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71 LTE-TDD: B38/41/42/43/46*/48 WCDMA: B2/4/5
Band (NA Version)
Band (EA Version)	5G-NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/ n77/n78/n79 LTE-FDD B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE-TDD B38/B39/B40/B41/B42/B43/B46*/B48 WCDMA B1/B5/B8
MIMO	DL 4 X 4 MIMO UL MIMO 2 X 2
CA Support	Up to 5CC, UL CA
Tx Power	23dBm±2dB
Max Modulation	DL QAM256 UL QAM256
Data Transfer	5G SA DL 2.4Gbps, UL 1Gbps 5G NSA DL 3.4Gbps, UL 600Mbps LTE DL 1.6Gbps, UL 200Mbps HSPA+ DL 42Mbps, UL 5.76Mbps

WiFi Specifications
Radio Access	IEEE802.11 a/b/g/n/ac/ax
MIMO	2 x 2
Throughput	AX3000 2.4G 574Mbps, 5G 2400Mbps
Connected Users	64
Security	64/128-bit WEP, WPA/WPA2/WPA3

Software features
Device Management	WEB GUI, FOTA, TR069
Features	DMZ (Demilitarized Zone), Network Traffic Statistics, SMS messaging, Power management USB Data Tethering Host USB Networking Support
Systems Supported	Windows® 7, 8, 10, 11 Mac OS® X 10.10 or Higher Linux® Ubuntu 14.04 or Higher Chromebook^TM and Microsoft® Surface
Security	Wi-Fi Security (WPA/WPA2/WPA3), Wi-Fi Protected Setup (WPS) Wi-Fi privacy separation, VPN Pass-Through MAC Address Filtering, NAT Firewall Port Forwarding, Port Filtering Security Hardened Web Interface, Password Hash Wi-Fi On/Off Control Incorrect Password Lockout Admin portal to block factory reset
