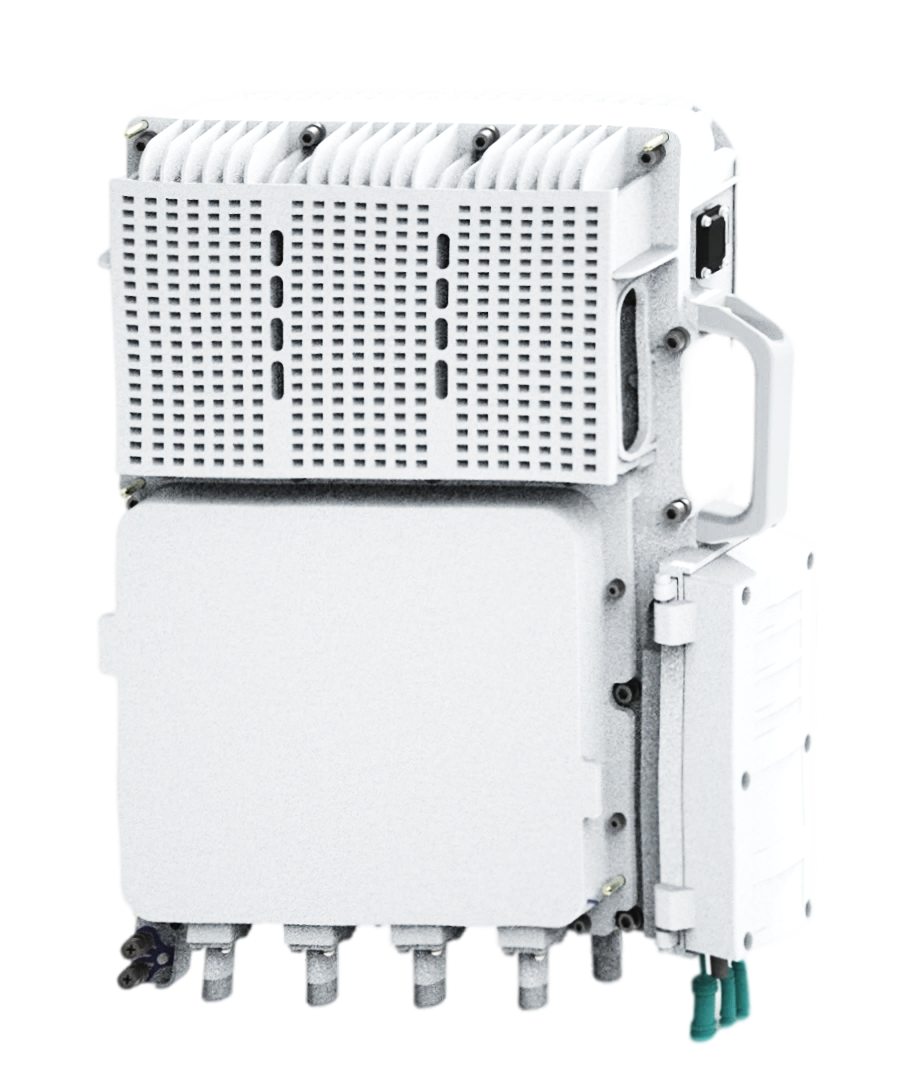

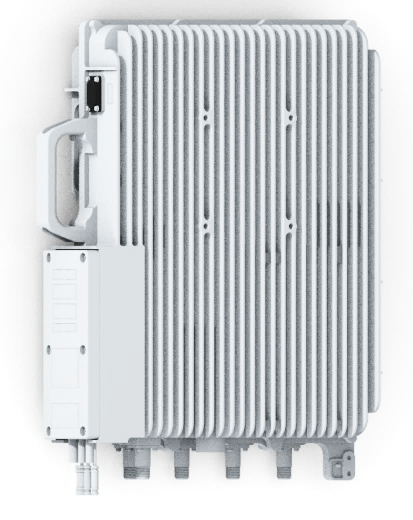

JTlink5800 adopts an integrated and compact design, supports 4T4R and 5G band n46. Featuring high integration, large capacity, high performance and easy deployment, it can meet the 5G deployment requirements of operators, WISPs, industrial private networks and other scenarios. It is widely used in transportation hubs, stadiums, exhibition halls, large shopping malls, office buildings, rural networks, hospitals, campuses, factories and other scenarios.

JTlink5800 adopts advanced wireless technologies and an integrated architecture design, utilizing multi-input multi-output (MIMO) technology and distributed antenna systems. It supports SA networking and 4×4 MIMO. Based on a fullyself-developed protocol stack and system software, the product performance and network quality are significantly improved.

Main Functions

Integratedbase station, supporting the following main functional features:

ØSupports 5G NR standard SA architecture.

ØSupports 1 NR cell with 100 MHz bandwidth and 4T4R configuration.

ØSupports 10 Gbps SFP+optical fiber backhaul interface.

ØMaximum output power of the whole system: 4x5 w

ØSupports multiple clocksynchronization modes, including GPS, BeiDou, and IEEE 1588v2.

ØSupports operation and maintenance through network management systems (OMC/LMT): configuration management, fault management, performance management, version management, foreground-background communication management, etc.
ØOptional AC 110 V/220 V powersupply mode.

Product Highlights

• High integration, small size, easy installation and deployment

Adopting an integrated design of 5G baseband processing unit and radio frequency unit, the product features high integration, small size and light weight, which facilitates installation and deployment. Equipped with external antennas, it supports multiple installation methods such as pole mounting, tower mounting and wall mounting. It enables efficient and rapid deployment without complex construction, thus reducing construction difficulty and cost. The product issuitable for various scenarios, and its light weight design also make stransportation and installation extremely convenient.

• 4T4R design, large capacity, high rateWithmulti-antenna technology

It can support higher data transmission rates, process more user connections and data transmissions simultaneously, and improve network capacity to support more concurrent online users. It supports full-IP transmission and 10 Gbps backhaul throughput to meet the rapid growth of future eMBB mobile data traffic demands.

• Low cost, plug-and-play, convenient operation and maintenance

Through fully independent R&D and optimized hardware and software production and design processes, costs are further reduced, enabling operators and vertical industries to build 5G networks at a lower cost. It supports plug-and-play and remote configuration and maintenance, reducing on-site installation,commissioning, O&M time and workload.

• Lowpower consumption, natural heat dissipation, green and energy-saving

Adopting high-efficiency natural heat dissipation and energy-saving technology, no additional cooling fan is required, featuring low power consumption, zero noise, and green energy efficiency
